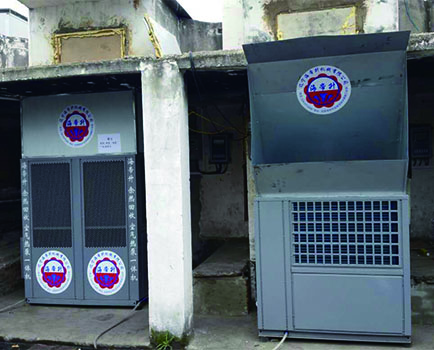

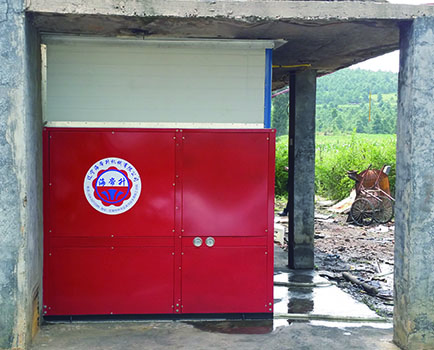

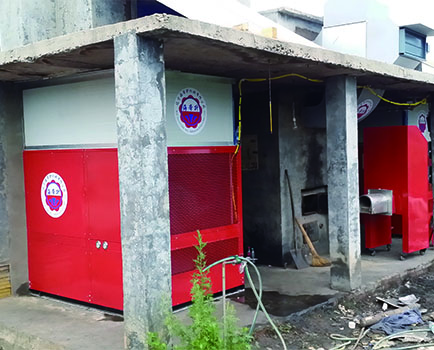

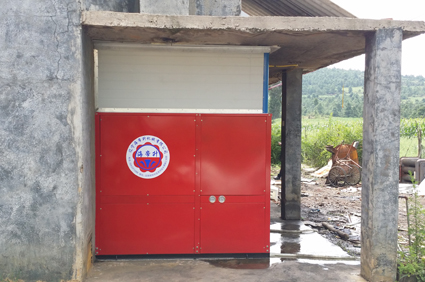

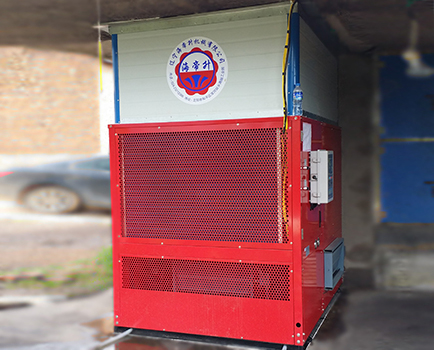

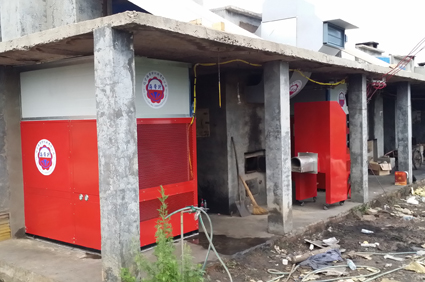

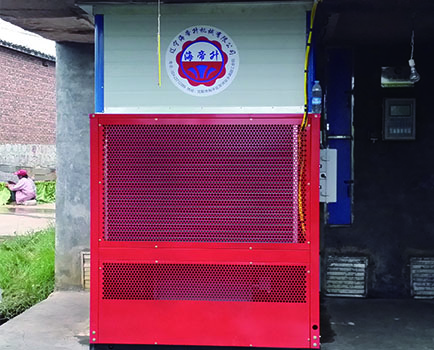

Product model:Heat pump tobacco dryer

Release time:2017-05-17 Browse number:131people information sources:

Easy installation

Energy efficient

Environment-friendly, non-pollution

Safe and reliable operation

Long service life

tel:024-23714466


Equipment advantages

1. Safety: The host equipment of heat pump (including power supply) is installed outside the curing barn, and the guide duct introduces the hot air into the curing barn. Thus, no open fire will be generated in the curing barn, ensuring absolute safety.

2. Environmental protection: The heat pump curing barn has no emission, eliminating influence on and harm of human body and environment, so tobacco growers and residents at the tobacco area can have a good working and living environment.

3. Energy conservation: Through comparison with repeated tests, the costs of heat pump curing barn are reduced by 30%, and the curing barn is controlled automatically and intelligently. It does not need to be attended by a specially-assigned person. Thus, the labor cost is reduced by about 60%.

4. High quality: The heat pump curing barn controls the heat source automatically and has high accuracy. Its temperature control accuracy reaches ±1℃, improving the baking quality of tobacco.

5. Labor saving: The heat pump curing barn automatically controls temperature and eliminates moisture without any fuel. In this case, the labor intensity of tobacco grower can be alleviated greatly, and one person can operate several curing barns very easily.

6. Time saving: The heat pump curing barn increases the temperature quickly and controls the temperature accurately, and is set in sequencing. Thus, the baking time standardization is reached, and the tobacco baking of each curing barn can save time of more than 24 hours.

Application scope


Configuration and parameters

SN

Item

Unit

Designed value

2

Overall dimensions of drying room

mm

8400×3200×2800

3

Capacity of curing barn

m3

51

Drying quality

t/batch

/

4

Size of wheel type drying car

mm

/

5

Quality of wheel type drying car

kg

/

6

Handling capacity

kg/h

≥83

7

Moisture elimination rate

%


8

Overall dimensions of hot air boiler

mm

/

9

Quality of hot air boiler

kg

/

10

Diameter of air outlet

mm


11

Outlet temperature of hot air

80

12

Coal consumption

kg/h

/



13


Fan

Fan

Qty

---

2

Model


GKF7-4

Speed

r/min

1450

Total pressure

Pa

>180

Flow

m3/h

>22000

Power

kW

2.2

14

Total installed capacity

kW

28.7
