◆Designed and manufactured by a professional team, the product is trustworthy.
◆A escape device is embedded to ensure the safety.
tel：024-85856600 85856699
Watch Video
Details
Instructions
Case

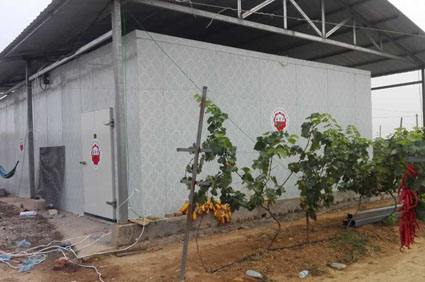

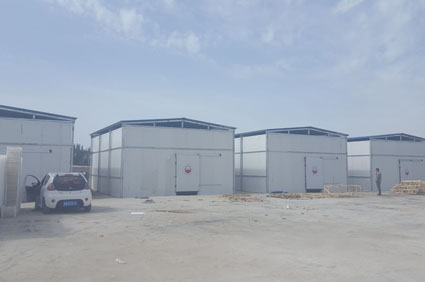

ConsultationThe refrigerating cabinet is quick to install and has short construction period.
It is easy to operate, operates safely and reliably, has long non-failure operation time and does not require being monitored by a specially-assigned person.
Full-automatic smart control, functions of temperature setting, temperature control and automatic defrosting, energy saving and low consumption.
Wide applicable scope, storage capacity of 5-200 tons of various foods, conformity to food sanitary standard internally, storage of vegetables, fruits, marine products, ice blocks, etc.
Item
Parameter
Model
BXG-27/300
BXG-54/520
BXG-58/1000
Overall dimensions (length x width x height) (mm)
10560×9160×4200
14400×13400×3500
14200×12200×6100
Interior dimensions ( length x width x height) (mm)
10370×7400×4000
14200×11300×3300
14000×12000×6000
Capacity ( m3)
306
529
1008
Refrigeration type
Air cooling
Air cooling
Air cooling
Cooling agent
R22
R22
R22
Designed temperature (℃)
-5℃~15℃adjustable
-5℃~15℃adjustable
-5℃~15℃adjustable
Refrigerating unit
15HP refrigerating unit (Danfoss, Bitzer, Copeland), refrigerating capacity (under -10/40℃ operating conditions) ≥17.4KW, 2 DD80 evaporators, matching with the refrigerating capacity of unit.
Two 15HP refrigerating units (Danfoss, Bitzer, Copeland), refrigerating capacity (under -10/40℃ operating conditions) ≥ 34.8KW, 4 DD80 evaporators, matching with the refrigerating capacity of unit.
Two 20HPrefrigerating units (Danfoss, Bitzer, Copeland), refrigerating capacity (under -10/40℃ operating conditions) ≥46.4KW, 2 BL2100 evaporators, matching with the refrigerating capacity of unit.

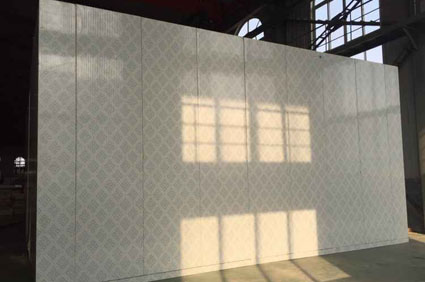

Cabinet body
Plate material
Outer layer
0.476 color steel plate
0.476 color steel plate
0.476 color steel plate
Inner core
40±2kg/m³ polyurethane, flame retardant level B2
40±2kg/m³ polyurethane, flame retardant level B2
40±2kg/m³ polyurethane, flame retardant level B2
Doorway size (mm)
1500×2300×100
1500×2300×100
1600×2300×100
Power supply
3P/AC380V±10％,
50HZ, installed power:15KW
3P/AC380V±10％,
50HZ, installed power:30KW
3P/AC380V±10％,
50HZ, installed power:60KW
Product qualification
