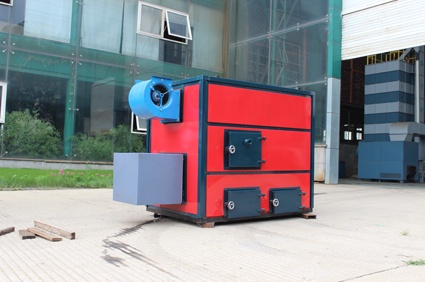

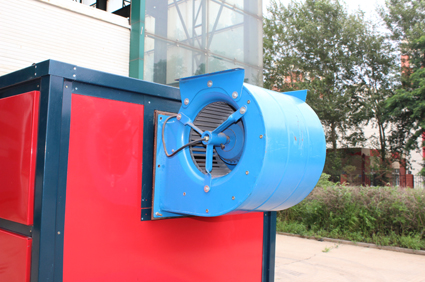

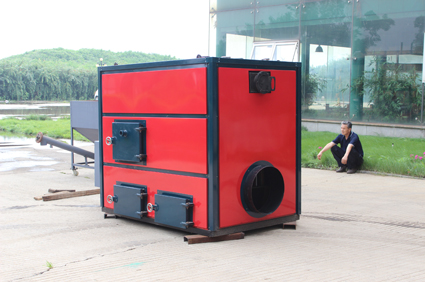

Product model:Biomass hot air boiler

Release time:2017-05-17 Browse number:200people information sources:

Automatic control of ambient temperature Automatic control of material feeding quantity


Automatic control of hot air output Automatic fire preservation to maintain combustion


Automatic alarm of abnormality Convenient and efficient ash removal mechanism


Pollution prevention of ash collection device, easy operation and beautiful appearance


tel:024-23712222

Product introduction

Our full-automatic environment-friendly boiler is widely applied in various required environments, including bathing, factory, shed, villa and office, etc. Such equipment uses environment-friendly coal as the main fuel, so the smoke discharged is colorless, clear and transparent, reaching the environmental protection requirements in the region category I and effectively protecting the environment. The product was awarded the title "Environment-friendly New Product of Liaoning Province".


Application scope


Product introduction

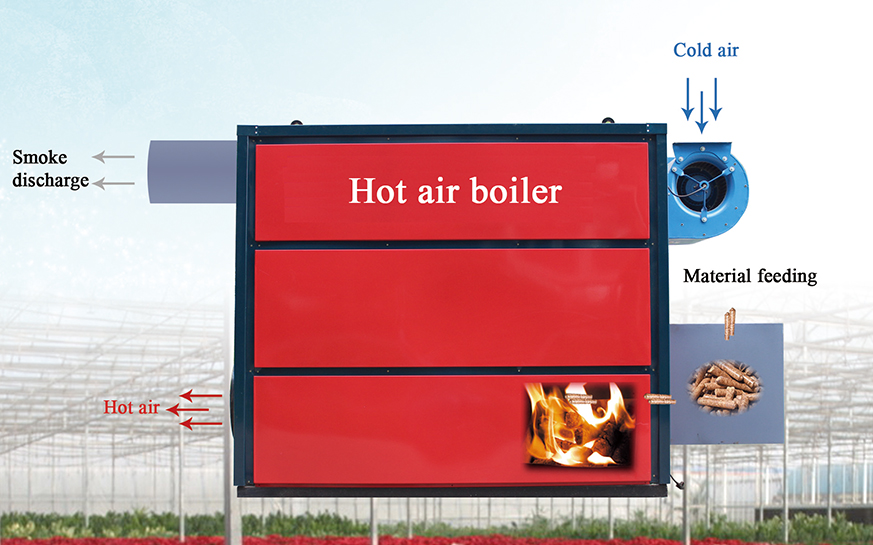

1. The hot blast heater is a new type of efficient heat-exchange equipment with biomass as the fuel and air as the medium, and can supply constant-temperature, constant-pressure, dust-free clean hot air continuously.

2. The equipment is easy to operate and maintain, feeds material and control temperature automatically, having high safety. Its operating costs are reduced sharply compared with the coal and fuel oil equipment.

3. The boiler adopts overall thermal insulation to reduce the heat loss and improve the heat efficiency of boiler.

4. The equipment has compact structure, small size and no noise. High chimney does not need to be erected. The equipment is easy to install and has low fault rate.

5. After the fuel is fully combusted, only a small amount of powdery ash content remnant is left and easy to be cleaned.

6. The equipment is applied widely.


Configuration and parameters

Model Power Overall dimensions: length * width * height(mm*mm*mm) Heat supply area (m2) Overall weight (t) Heat efficiency (%) Fuel consumption (kg/h) Blast capacity of fan heater (m3/h)

Fan heater temperature (℃)

Fan heater outlet pipe diameter (mm) Rated voltage (V/kw)
MW Kcal/h
100 thousand 0.116 10x104 1985 x 1288 x 1702 1200~2000 1.884 60~70 25~29 4500~6000 60~70 500 380/1.2
200 thousand 0.232 20x104 2100 x 1300 x 1802 2100~3000 2.122 60~70 50~58 9000~12000 60~70 550 380/1.6
300 thousand 0.345 30x104 2200 x 1350 x 1990 3000~4000 2.721 60~70 75~88 13500~15000 60~70 600 380/2.45



Use fuel


Working principle


Product qualification

Case display
