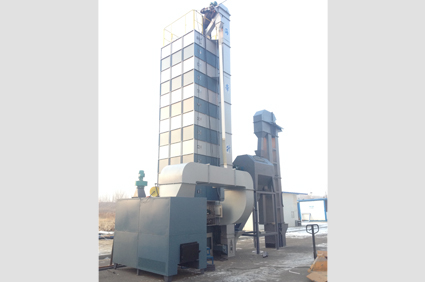

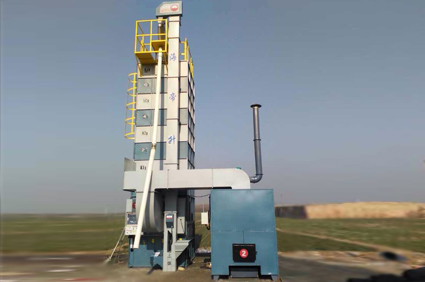

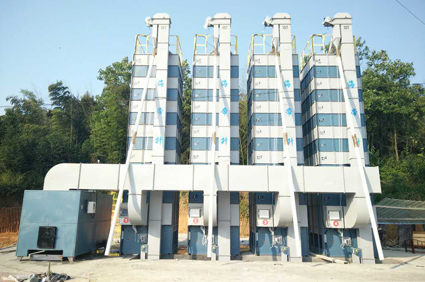

ConsultationThe hot blast heater is researched and designed according to the combustion characteristics of biomass, e.g., rice shell, straw and cavings, etc. After combustion, the clean air is generated through heat exchange. Then, the drying is conducted. It has superior performance and can use various renewable energies. Multiple granular or powdered fuels, e.g., rice shell, straw, sawdust and coal, can be fully combusted at semi-floating state. Its hot air efficiency can reach 70% above and it can realize automatic, semi-automatic production operation. The application of biomass fuel not only protects the environment but also saves costs. Moreover, it is easy to operate and has excellent effect.
|
Item |
Basic configuration and technical parameters |
||||
|
Model |
5LD-15 |
5LD-30 |
5LD-45 |
5LD-60 |
5LD-90 |
|
Overall dimensions (length x width x height)mm |
2480×1280×1950 |
2780×1680×2300 |
2780×1680×2300 |
3950×2050×2400 |
4680×2250×2700 |
|
Overall weight (t) |
1500 |
3000 |
3000 |
4500 |
6000 |
|
Heat supply capacity (kj/h) |
150 – 300 thousand kilocalories |
300 – 450 thousand kilocalories |
450 – 600 thousand kilocalories |
600 – 900 thousand kilocalories |
900 thousand kilocalories |
|
Allowable loading capacity (set) |
One to one |
One to Two |
One to Three |
One to Four |
One to Six |
|
Coal consumption (kg/h) |
35-45 |
80-90 |
110-130 |
170-180 |
240-270 |
|
Adapted coal |
Calorific value＞5000 Kcal |
Calorific value＞5000 Kcal |
Calorific value＞5000 Kcal |
Calorific value＞5000 Kcal |
Calorific value＞5000 Kcal |
|
Two draft fan Power and voltage kw/v |
0.75/220 |
1.1/220 |
1.1/220 |
2.2/220 |
2.2/220 |
|
Flue draft fan Power and voltage kw/v |
1.5/380 |
2.2/380 |
3.0/380 |
5.5/380 |
5.5/380 |
|
Power consumption (kw/h) |
≤2.25 |
≤3.3 |
≤4.1 |
≤7.7 |
≤7.7 |
|
Equipment voltage V |
220/380 |
220/380 |
220/380 |
220/380 |
220/380 |
|
Device control mode |
Manual / automatic |
Manual / automatic |
Manual / automatic |
Manual / automatic |
Manual / automatic |
|
Equipment control accuracy |
±1 |
±1 |
±1 |
±1 |
±1 |
