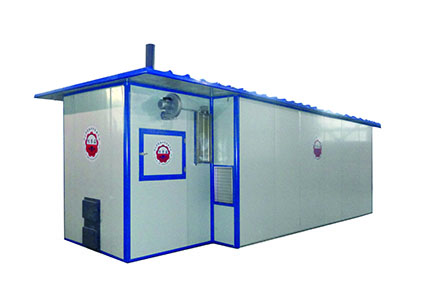

Product model:5HFP-50.1Fruit and vegetable dryer

Release time:2017-05-17 Browse number:154people information sources:

国家农业补贴产品


Excellent drying effect- HAIDISHENG!

Professional drying: fruits, vegetables, edible fungi, traditional Chinese medicinal materials, marine products and other subsidiary agricultural products.


tel:024-85856600 85856699

Product introduction

5H series fruit and vegetable dryer is an automatic drying equipment researched and developed by our R&D staff with dedication based on summary and absorption of advanced technologies home and abroad.

5H series fruit and vegetable dryer adopts forced ventilation, and heated air circulation method to transmit thermal power and exchange the humidity and heat. Compared with the traditional dryer in China, the equipment has advantages of large material loading density, labor saving, fuel saving, stable temperature and humidity, high automation, easy operation and shorter drying time, etc. In the drying process, the heating is uniform. After dried, jujube has bright color, little and shallow wrinkle on the skin, strong elasticity, small color difference on the front and reverse sides as well as increased commercial grade, average price and economic benefit.

In addition to drying of jujube, 5H series fruit and vegetable dryer can be also used to dry multiple subsidiary agricultural products to enhance the economic value and increase the foreign exchange earning, such as vegetables, edible fungi, traditional Chinese medicinal materials, marine products, fresh fruits, grains and forage grass, etc. The equipment can be applied for multiple purposes, improving the utilization rate of dryer.


Application scope


Product features


Configuration and parameters

Item

Technical parameters

Model

5HH-48.6

5HFP-50.1

Overall dimensions (length x width x height)(mm)

8730×3500×2700

8730×3500×2700

Installation type

Masonry type

Plate type

Heating capacity of heat supply equipment

More than 418000kJ/h (100 thousand kilocalories)

Allowable loading capacity (kg)

3000-3500

Heating mode

Power supply, heat pump, gas, combustible biomass fuel: straw, rice shell, melon seed skin, etc.

Motor power of circulating fan (Kw)

4.4

Rated power (Kw)

4.8

Equipment voltage (V)

220/380±20%

Control method of temperature and humidity control equipmen

Manual/ automatic

Control accuracy of temperature and humidity control equipment (℃)

Dry bulb ±1, wet bulb ±1

Records query, recording capacity

Once every hour, recording for 500 h or 100 h


Use fuel

Working principle

Introduction of equipment items



Product qualification

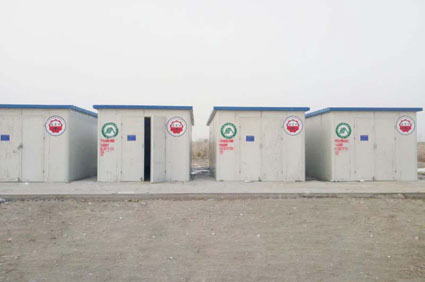

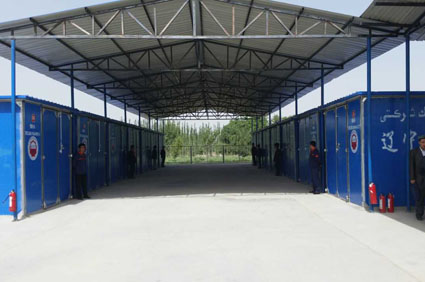

Case display
